Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/22/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/23/2025 | 18:00:09 | -79.58, 78.02 | 123.63 | 06/23/2025 | 18:00:48 | -79.57, 78.07 | 123.64 | 1.07 | 39 |
| 2 | 06/23/2025 | 18:50:46 | 79.34,-112.58 | 56.07 | 06/23/2025 | 18:50:00 | 79.35,-112.62 | 56.08 | 0.85 | 46 |
| 3 | 06/26/2025 | 03:30:54 | -79.65, -65.31 | 123.46 | 06/26/2025 | 03:31:49 | -79.64, -65.15 | 123.48 | 3.17 | 55 |
| 4 | 06/26/2025 | 04:21:30 | 79.39, 104.38 | 56.20 | 06/26/2025 | 04:21:00 | 79.39, 104.42 | 56.19 | 1.06 | 30 |
| 5 | 06/28/2025 | 13:01:37 | -79.67, 151.92 | 123.33 | 06/28/2025 | 13:02:48 | -79.66, 152.05 | 123.36 | 2.87 | 71 |
| 6 | 06/28/2025 | 13:52:14 | 79.44, -38.68 | 56.37 | 06/28/2025 | 13:52:00 | 79.44, -38.66 | 56.37 | 0.45 | 14 |
| 7 | 06/30/2025 | 23:22:56 | 79.43, 178.80 | 56.50 | 06/30/2025 | 23:22:58 | 79.44, 178.68 | 56.51 | 2.55 | 2 |
| 8 | 07/03/2025 | 08:53:39 | 79.49, 35.70 | 56.76 | 07/03/2025 | 08:53:56 | 79.49, 35.63 | 56.76 | 1.52 | 17 |
| 9 | 07/03/2025 | 09:44:17 | -79.26,-155.05 | 123.54 | 07/03/2025 | 09:43:08 | -79.27,-155.10 | 123.53 | 0.97 | 69 |
| 10 | 07/05/2025 | 18:24:22 | 79.51,-107.14 | 57.01 | 07/05/2025 | 18:24:54 | 79.52,-107.27 | 57.02 | 2.93 | 32 |

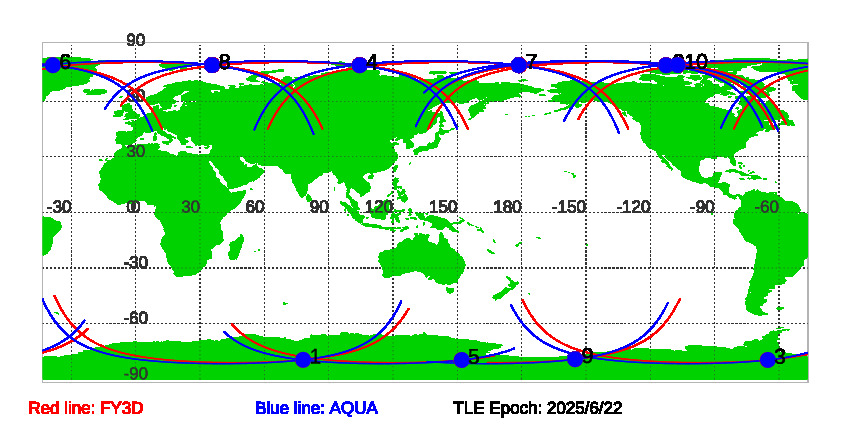

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 6/22/2025
Download SNOs between FY3D and AQUA since TLE EPOCH: 06/22/2025 in txt file.
Historial Predications of SNOs between FY3D and AQUA
