Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/20/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/21/2025 | 08:29:26 | -79.58,-139.35 | 123.66 | 06/21/2025 | 08:29:48 | -79.57,-139.20 | 123.67 | 3.07 | 22 |
| 2 | 06/21/2025 | 09:20:02 | 79.31, 30.32 | 55.99 | 06/21/2025 | 09:18:59 | 79.30, 30.38 | 55.99 | 1.32 | 63 |
| 3 | 06/23/2025 | 18:00:09 | -79.59, 77.92 | 123.61 | 06/23/2025 | 18:00:48 | -79.59, 77.96 | 123.62 | 0.80 | 39 |
| 4 | 06/23/2025 | 18:50:45 | 79.32,-112.42 | 56.04 | 06/23/2025 | 18:49:59 | 79.33,-112.48 | 56.05 | 1.27 | 46 |
| 5 | 06/26/2025 | 03:30:53 | -79.63, -65.13 | 123.48 | 06/26/2025 | 03:31:48 | -79.63, -65.03 | 123.50 | 2.14 | 55 |
| 6 | 06/26/2025 | 04:21:29 | 79.37, 104.54 | 56.17 | 06/26/2025 | 04:20:59 | 79.37, 104.53 | 56.17 | 0.30 | 30 |
| 7 | 06/28/2025 | 13:01:36 | -79.65, 152.09 | 123.35 | 06/28/2025 | 13:02:47 | -79.65, 152.13 | 123.37 | 0.83 | 71 |
| 8 | 06/28/2025 | 13:52:12 | 79.39, -38.25 | 56.30 | 06/28/2025 | 13:51:58 | 79.40, -38.33 | 56.31 | 1.72 | 14 |
| 9 | 06/30/2025 | 23:22:57 | 79.48, 178.40 | 56.56 | 06/30/2025 | 23:22:58 | 79.48, 178.42 | 56.56 | 0.41 | 1 |
| 10 | 07/03/2025 | 08:53:40 | 79.50, 35.57 | 56.78 | 07/03/2025 | 08:53:56 | 79.50, 35.56 | 56.77 | 0.20 | 16 |

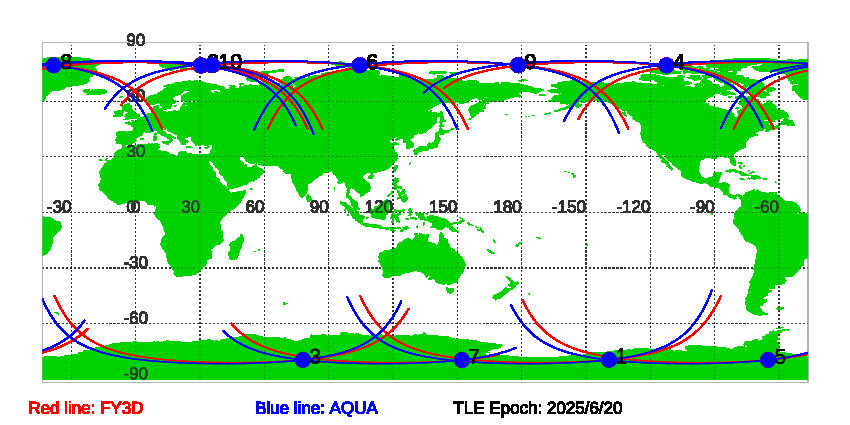

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 6/20/2025
Download SNOs between FY3D and AQUA since TLE EPOCH: 06/20/2025 in txt file.
Historial Predications of SNOs between FY3D and AQUA
