Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 1/25/2024
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 01/25/2024 | 05:29:17 | 79.17, 78.41 | 98.96 | 01/25/2024 | 05:29:30 | 79.16, 78.45 | 98.95 | 1.06 | 13 |
| 2 | 01/25/2024 | 06:19:54 | -78.87,-112.11 | 81.47 | 01/25/2024 | 06:18:45 | -78.87,-112.09 | 81.46 | 0.52 | 69 |
| 3 | 01/27/2024 | 18:23:55 | 79.19,-115.39 | 98.37 | 01/27/2024 | 18:23:59 | 79.19,-115.28 | 98.36 | 2.47 | 4 |
| 4 | 01/27/2024 | 19:11:21 | -70.06, 81.97 | 91.49 | 01/27/2024 | 19:10:09 | -69.71, 79.58 | 91.92 | 99.18 | 72 |
| 5 | 01/30/2024 | 06:28:30 | -80.44,-129.41 | 80.12 | 01/30/2024 | 06:29:44 | -80.63,-128.92 | 80.03 | 23.30 | 74 |
| 6 | 01/30/2024 | 07:18:30 | 79.16, 51.28 | 97.65 | 01/30/2024 | 07:18:24 | 79.15, 51.36 | 97.64 | 1.91 | 6 |
| 7 | 02/01/2024 | 19:22:25 | -79.27, 49.47 | 82.88 | 02/01/2024 | 19:23:29 | -79.28, 49.33 | 82.88 | 3.13 | 64 |
| 8 | 02/01/2024 | 20:13:04 | 79.06,-141.59 | 96.81 | 02/01/2024 | 20:12:47 | 79.06,-141.62 | 96.82 | 0.66 | 17 |
| 9 | 02/04/2024 | 08:17:02 | -79.28,-144.21 | 83.60 | 02/04/2024 | 08:17:53 | -79.28,-144.27 | 83.61 | 1.20 | 51 |
| 10 | 02/04/2024 | 09:07:41 | 79.07, 24.71 | 96.09 | 02/04/2024 | 09:07:11 | 79.07, 24.77 | 96.09 | 1.19 | 30 |
| 11 | 02/06/2024 | 21:11:37 | -79.23, 22.58 | 84.44 | 02/06/2024 | 21:12:14 | -79.23, 22.52 | 84.45 | 1.23 | 37 |

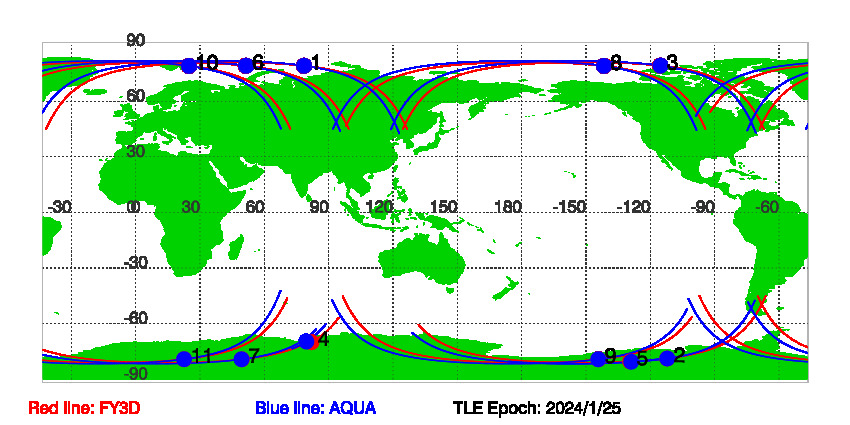

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 1/25/2024
Download SNOs between FY3D and AQUA since TLE EPOCH: 01/25/2024 in txt file.
Historial Predications of SNOs between FY3D and AQUA
