Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/15/2022
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/17/2022 | 00:22:00 | 76.25, 162.79 | 53.14 | 06/17/2022 | 00:23:06 | 76.25, 162.78 | 53.12 | 0.26 | 66 |
| 2 | 06/17/2022 | 01:12:20 | -75.10, -26.14 | 128.18 | 06/17/2022 | 01:12:08 | -75.10, -26.19 | 128.17 | 1.71 | 12 |
| 3 | 06/19/2022 | 15:48:56 | -75.93, 112.15 | 127.28 | 06/19/2022 | 15:49:30 | -75.93, 112.17 | 127.29 | 0.48 | 34 |
| 4 | 06/19/2022 | 16:39:17 | 74.74, -76.86 | 51.37 | 06/19/2022 | 16:38:33 | 74.74, -76.86 | 51.38 | 0.11 | 44 |
| 5 | 06/22/2022 | 06:30:06 | -79.37, 165.18 | 111.58 | 06/22/2022 | 06:31:18 | -80.12, 162.73 | 111.37 | 96.30 | 72 |
| 6 | 06/22/2022 | 07:15:50 | 75.41, 62.12 | 52.12 | 06/22/2022 | 07:15:52 | 75.41, 62.08 | 52.12 | 1.32 | 2 |
| 7 | 06/22/2022 | 08:04:34 | -69.32,-117.85 | 134.20 | 06/22/2022 | 08:03:20 | -69.21,-118.46 | 134.33 | 27.22 | 74 |
| 8 | 06/24/2022 | 21:52:25 | 76.15,-159.40 | 53.02 | 06/24/2022 | 21:53:12 | 76.14,-159.37 | 53.00 | 0.82 | 47 |
| 9 | 06/24/2022 | 22:42:47 | -75.09, 11.33 | 128.19 | 06/24/2022 | 22:42:16 | -75.09, 11.35 | 128.19 | 0.76 | 31 |
| 10 | 06/27/2022 | 13:19:20 | -75.76, 150.20 | 127.35 | 06/27/2022 | 13:19:34 | -75.75, 150.22 | 127.35 | 0.40 | 14 |

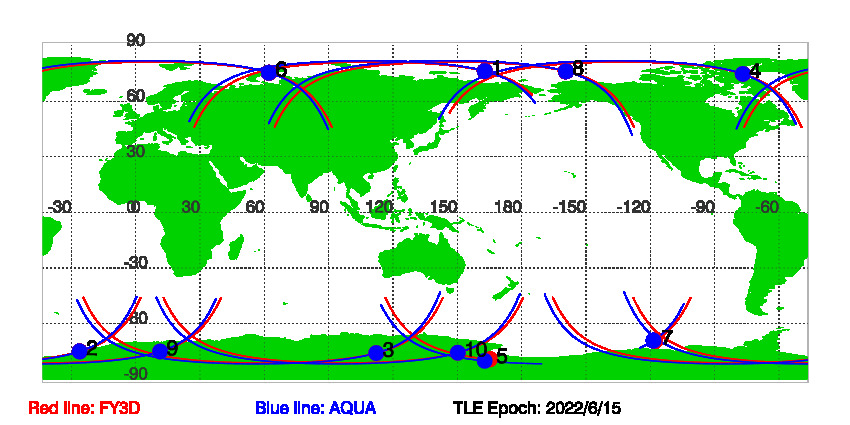

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 6/15/2022
Download SNOs between FY3D and AQUA since TLE EPOCH: 06/15/2022 in txt file.
Historial Predications of SNOs between FY3D and AQUA
