Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 1/8/2022
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 01/09/2022 | 21:04:23 | 73.45,-141.26 | 95.48 | 01/09/2022 | 21:05:14 | 73.44,-141.18 | 95.46 | 2.60 | 51 |
| 2 | 01/09/2022 | 21:54:15 | -70.72, 31.36 | 87.37 | 01/09/2022 | 21:53:49 | -70.73, 31.31 | 87.37 | 2.10 | 26 |
| 3 | 01/12/2022 | 12:31:22 | -72.91, 168.16 | 85.50 | 01/12/2022 | 12:32:06 | -72.92, 168.13 | 85.50 | 1.00 | 44 |
| 4 | 01/12/2022 | 13:21:29 | 70.91, -20.73 | 92.42 | 01/12/2022 | 13:20:56 | 70.91, -20.74 | 92.42 | 0.14 | 33 |
| 5 | 01/15/2022 | 03:58:33 | 72.96, 116.28 | 94.10 | 01/15/2022 | 03:59:10 | 72.96, 116.29 | 94.09 | 0.26 | 37 |
| 6 | 01/15/2022 | 04:48:39 | -70.94, -72.55 | 88.02 | 01/15/2022 | 04:47:58 | -70.94, -72.52 | 88.02 | 1.33 | 41 |
| 7 | 01/17/2022 | 19:25:42 | -72.98, 64.47 | 86.39 | 01/17/2022 | 19:26:11 | -72.98, 64.50 | 86.40 | 1.11 | 29 |
| 8 | 01/17/2022 | 20:15:47 | 70.88,-124.22 | 91.42 | 01/17/2022 | 20:14:59 | 70.88,-124.18 | 91.41 | 1.83 | 48 |
| 9 | 01/20/2022 | 10:52:49 | 72.84, 13.01 | 92.92 | 01/20/2022 | 10:53:11 | 72.83, 13.03 | 92.91 | 0.73 | 22 |

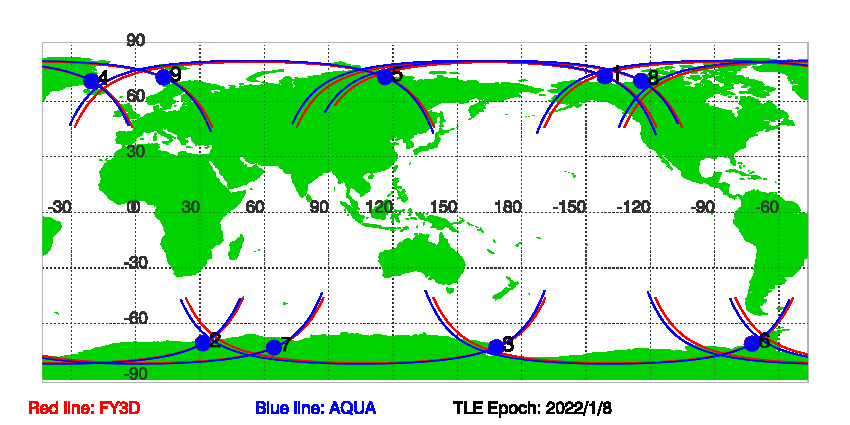

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 1/8/2022
Download SNOs between FY3D and AQUA since TLE EPOCH: 01/08/2022 in txt file.
Historial Predications of SNOs between FY3D and AQUA
