Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between AURA and NPP Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/24/2023
| Index | Date (AURA) | Time (AURA) | Lat,Lon (AURA) | SZA (AURA ) | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Distance(km) | Time Diff (sec) |
| 1 | 07/24/2023 | 22:57:26 | 79.89, 95.99 | 72.53 | 07/24/2023 | 22:57:22 | 79.89, 95.94 | 72.54 | 1.02 | 4 |
| 2 | 07/24/2023 | 23:46:47 | -80.08, -94.86 | 107.76 | 07/24/2023 | 23:48:01 | -80.07, -94.90 | 107.81 | 0.84 | 74 |
| 3 | 07/27/2023 | 13:33:51 | 79.75,-124.25 | 73.33 | 07/27/2023 | 13:32:52 | 79.74,-124.27 | 73.37 | 0.59 | 59 |
| 4 | 07/27/2023 | 14:23:12 | -79.94, 44.89 | 106.97 | 07/27/2023 | 14:23:31 | -79.94, 44.86 | 106.98 | 0.53 | 19 |
| 5 | 07/30/2023 | 04:59:36 | -79.80,-175.28 | 106.16 | 07/30/2023 | 04:59:01 | -79.79,-175.38 | 106.11 | 1.97 | 35 |
| 6 | 07/30/2023 | 05:48:55 | 80.00, -6.03 | 73.54 | 07/30/2023 | 05:49:39 | 79.99, -6.16 | 73.53 | 2.82 | 44 |
| 7 | 08/01/2023 | 20:25:17 | 79.90, 134.09 | 74.32 | 08/01/2023 | 20:25:07 | 79.90, 134.10 | 74.33 | 0.25 | 10 |
| 8 | 08/01/2023 | 21:14:38 | -80.09, -56.70 | 105.98 | 08/01/2023 | 21:15:46 | -80.09, -56.67 | 106.03 | 0.58 | 68 |
| 9 | 08/04/2023 | 11:01:39 | 79.77, -86.01 | 75.19 | 08/04/2023 | 11:00:36 | 79.78, -85.95 | 75.22 | 1.44 | 63 |
| 10 | 08/04/2023 | 11:50:59 | -80.00, 83.46 | 105.17 | 08/04/2023 | 11:51:14 | -80.00, 83.55 | 105.20 | 1.82 | 15 |
| 11 | 08/07/2023 | 02:27:20 | -79.84,-136.88 | 104.24 | 08/07/2023 | 02:26:43 | -79.85,-136.82 | 104.22 | 1.26 | 37 |

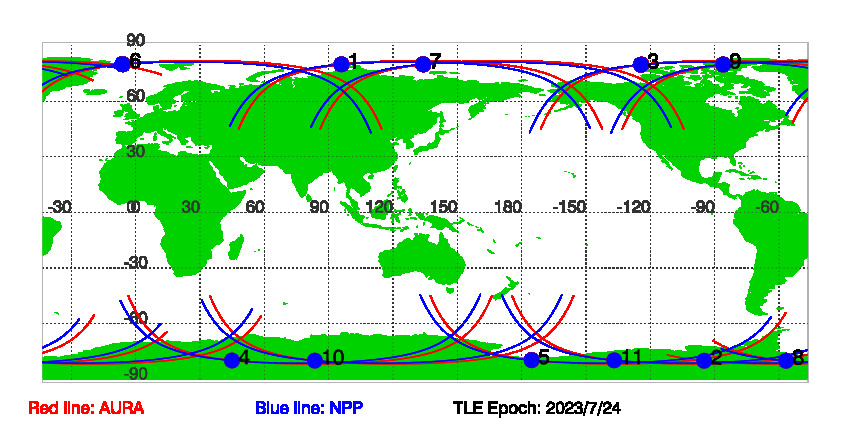

Figure of AURA and NPP satellite orbits during SNOs since TLE Epoch: 7/24/2023
Download SNOs between AURA and NPP since TLE EPOCH: 07/24/2023 in txt file.
Historial Predications of SNOs between AURA and NPP
