Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between AURA and NPP Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/21/2022
| Index | Date (AURA) | Time (AURA) | Lat,Lon (AURA) | SZA (AURA ) | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Distance(km) | Time Diff (sec) |
| 1 | 08/21/2022 | 11:25:30 | 79.46, -94.76 | 80.75 | 08/21/2022 | 11:25:27 | 79.47, -94.72 | 80.74 | 1.04 | 3 |
| 2 | 08/21/2022 | 12:14:32 | -80.35, 80.01 | 100.65 | 08/21/2022 | 12:15:46 | -80.26, 80.31 | 100.73 | 11.13 | 74 |
| 3 | 08/24/2022 | 02:52:36 | -79.31,-147.55 | 98.18 | 08/24/2022 | 02:51:44 | -79.31,-147.49 | 98.16 | 1.28 | 52 |
| 4 | 08/24/2022 | 03:41:55 | 79.53, 21.59 | 81.51 | 08/24/2022 | 03:42:21 | 79.53, 21.53 | 81.50 | 1.20 | 26 |
| 5 | 08/26/2022 | 19:09:00 | -79.41, -31.02 | 97.45 | 08/26/2022 | 19:08:37 | -79.41, -30.99 | 97.44 | 0.71 | 23 |
| 6 | 08/26/2022 | 19:58:20 | 79.62, 138.13 | 82.25 | 08/26/2022 | 19:59:15 | 79.62, 138.05 | 82.23 | 1.60 | 55 |
| 7 | 08/29/2022 | 10:36:05 | 79.20, -84.09 | 83.73 | 08/29/2022 | 10:34:54 | 79.21, -84.09 | 83.78 | 0.26 | 71 |
| 8 | 08/29/2022 | 11:25:24 | -79.53, 85.69 | 96.73 | 08/29/2022 | 11:25:30 | -79.53, 85.78 | 96.75 | 1.95 | 6 |
| 9 | 09/01/2022 | 02:52:27 | 79.39, 33.00 | 84.38 | 09/01/2022 | 02:51:45 | 79.40, 33.15 | 84.38 | 3.13 | 42 |
| 10 | 09/01/2022 | 03:41:50 | -79.56,-158.20 | 95.86 | 09/01/2022 | 03:42:26 | -79.55,-158.27 | 95.88 | 1.38 | 36 |
| 11 | 09/03/2022 | 19:08:52 | 79.44, 149.26 | 85.22 | 09/03/2022 | 19:08:40 | 79.45, 149.33 | 85.22 | 1.60 | 12 |

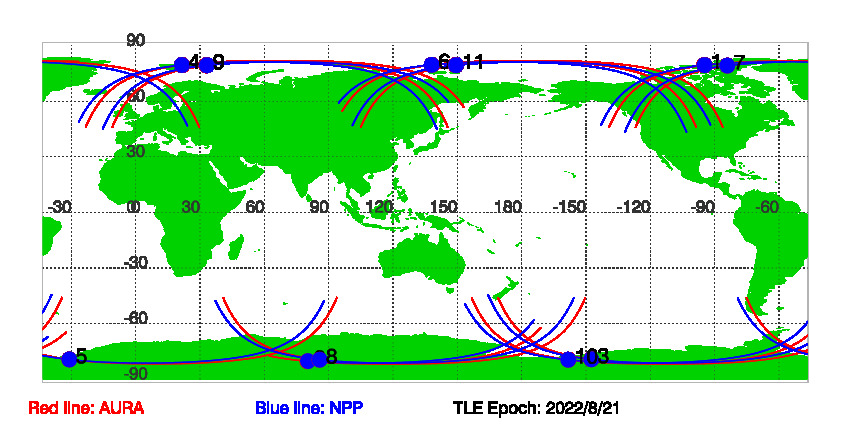

Figure of AURA and NPP satellite orbits during SNOs since TLE Epoch: 8/21/2022
Download SNOs between AURA and NPP since TLE EPOCH: 08/21/2022 in txt file.
Historial Predications of SNOs between AURA and NPP
