Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between AURA and NPP Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/31/2022
| Index | Date (AURA) | Time (AURA) | Lat,Lon (AURA) | SZA (AURA ) | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Distance(km) | Time Diff (sec) |
| 1 | 07/31/2022 | 02:52:34 | 79.28, 32.27 | 75.01 | 07/31/2022 | 02:51:27 | 79.29, 32.39 | 75.04 | 2.72 | 67 |
| 2 | 07/31/2022 | 03:41:56 | -79.48,-158.78 | 105.28 | 07/31/2022 | 03:42:07 | -79.47,-158.85 | 105.27 | 1.59 | 11 |
| 3 | 08/02/2022 | 19:09:03 | 79.34, 148.54 | 75.58 | 08/02/2022 | 19:08:23 | 79.34, 148.50 | 75.62 | 0.92 | 40 |
| 4 | 08/02/2022 | 19:58:23 | -79.61, -41.94 | 104.82 | 08/02/2022 | 19:59:00 | -79.62, -41.89 | 104.86 | 1.16 | 37 |
| 5 | 08/05/2022 | 11:25:29 | 79.47, -94.72 | 76.08 | 08/05/2022 | 11:25:15 | 79.48, -94.58 | 76.06 | 3.09 | 14 |
| 6 | 08/05/2022 | 12:14:51 | -79.67, 74.32 | 104.22 | 08/05/2022 | 12:15:55 | -79.66, 74.26 | 104.25 | 1.35 | 64 |
| 7 | 08/08/2022 | 02:52:40 | -79.22,-148.17 | 102.85 | 08/08/2022 | 02:51:36 | -79.21,-148.25 | 102.78 | 1.92 | 64 |
| 8 | 08/08/2022 | 03:41:57 | 79.55, 21.72 | 76.67 | 08/08/2022 | 03:42:10 | 79.56, 21.81 | 76.65 | 1.80 | 13 |
| 9 | 08/10/2022 | 19:09:08 | -79.29, -31.79 | 102.22 | 08/10/2022 | 19:08:31 | -79.29, -31.90 | 102.17 | 2.20 | 37 |
| 10 | 08/10/2022 | 19:58:25 | 79.62, 138.11 | 77.31 | 08/10/2022 | 19:59:05 | 79.63, 138.19 | 77.27 | 1.67 | 40 |
| 11 | 08/13/2022 | 11:25:35 | -79.40, 84.79 | 101.60 | 08/13/2022 | 11:25:25 | -79.40, 84.73 | 101.58 | 1.33 | 10 |

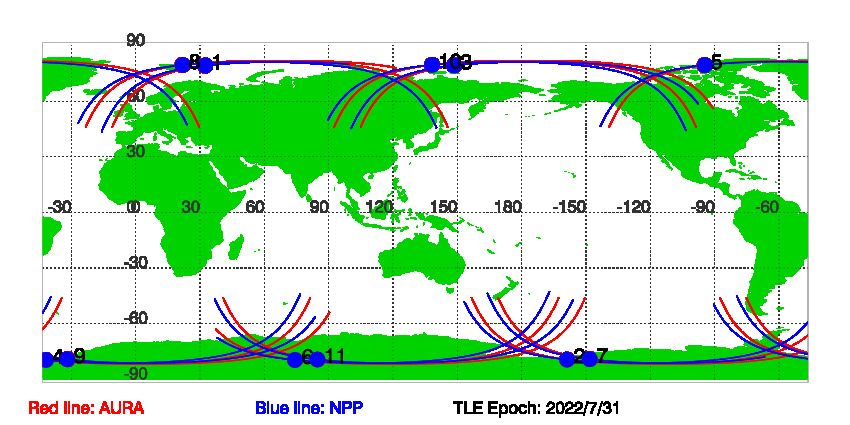

Figure of AURA and NPP satellite orbits during SNOs since TLE Epoch: 7/31/2022
Download SNOs between AURA and NPP since TLE EPOCH: 07/31/2022 in txt file.
